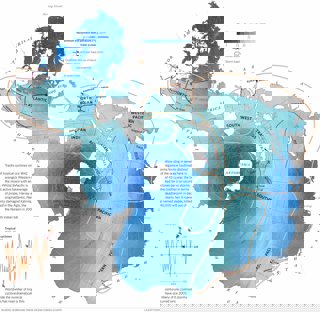

James Cheshire, Professor of Geographic Information and Cartography at University College London, and artist and designer Oliver Uberti, created this visualisation showing a single ocean view of the world for their book Atlas of the Invisible. Here James explains why the visualisation was created, the data used and how you can create something similar.

Graphic depicting the seas surface temperature
© James Cheshire and Oliver Uberti



What data did you use to create it and why?

There are lots of data layers here – hurricane tracks, ocean currents, ocean temperature – that we have combined to a ‘single ocean view’ that was a map projection developed by Athelstan Spilhaus. We wanted to show the impacts of a warming ocean on the frequency and intensity of storms.

Why did you choose to present the data in this way over other approaches?

We thought this was a powerful way of showing the interconnectedness of the world’s oceans.

How else might this approach or data be used? How can the visualisation be taken a step further?

John Nelson of ESRI has some great examples of this how approach can be used on the ESRI Blog.


Try it yourself

For this map James used the Spilhaus projection available in ArcGIS. It was combined with layers generated in the software package R to show the ocean currents and temperature. The final design was undertaken in Adobe Photoshop, Illustrator and InDesign.


See more from Atlas of the Invisible, including a range of educational materials to accompany the book.
